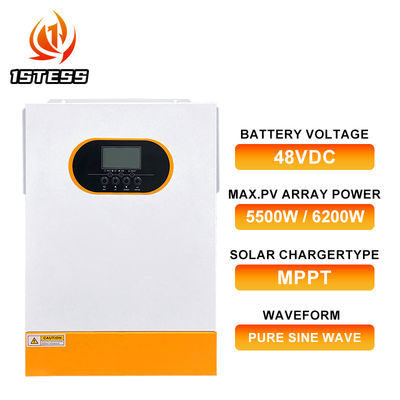

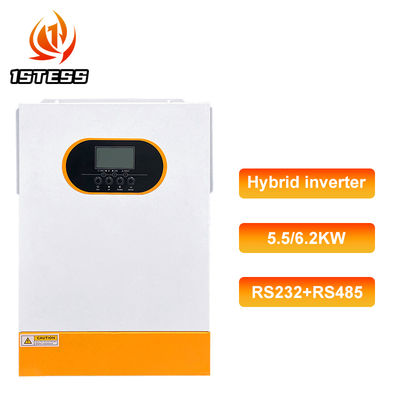

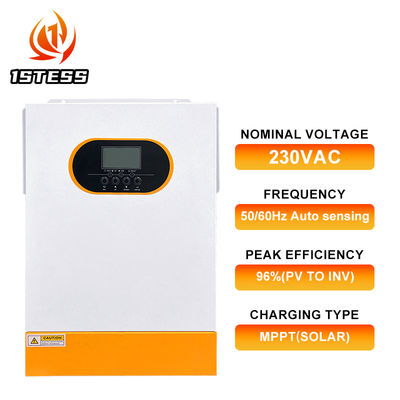

48V 5.5kw 6.2kw Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverters with Detachable Dust Cover
起源の場所 | 中国広州 |
---|---|
ブランド名 | COENG |
証明 | CE, IEC |
モデル番号 | EM (PV60-500VDC) 6200 48L |
ドキュメント | EM1.5-6.2.pdf |
最小注文数量 | 1 |
パッケージの詳細 | カートン、パレット |
受渡し時間 | 10-30Working Days |
支払条件 | L/C、T/T、Western Union |
供給の能力 | 20000ピース/月 |

試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。

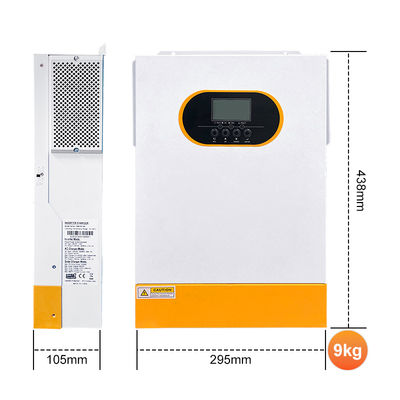

xサイズ | 438*295*105mm | バッテリー電圧 | 24V/48V |
---|---|---|---|
入力電圧 | 230VAC | OEM | OEMを受け入れます |
インバータータイプ | ハイブリッドソーラーインバーター | 出力タイプ | 単一の純粋な正弦波 |
総重量 | 9kg | ||
ハイライト | 48V hybrid solar inverter with MPPT,5.5kW off grid solar inverter,pure sine wave solar inverter |
EM3500-24L | EM5500-48L | EM6200-48L | |
---|---|---|---|
Model Number | EM3500-24L | EM5500-48L | EM6200-48L |
Place of Origin | China | China | China |
Mounting Method | Wall Bracket | Wall Bracket | Wall Bracket |
Nominal Battery Voltage (V) | 24VDC | 48VDC | 48VDC |
Lithium Battery activation | YES( By PV or Utility) | YES( By PV or Utility) | YES( By PV or Utility) |
Nominal Voltage | 230VAC | 230VAC | 230VAC |
Lithium Battery communication | YES(RS485) | YES(RS485) | YES(RS485) |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
Waveform | Pure Sine wave | Pure Sine wave | Pure Sine wave |
Solar Charger Type | MPPT | MPPT | MPPT |
Communication Interface | RS232+RS485 | RS232+RS485 | RS232+RS485 |
PV Array MPPT Voltage Range | 60VDC~500VDC | 60VDC~500VDC | 60VDC~500VDC |
Surge Power | 7000VA | 11000VA | 1240VA |
Size | 358*295*100mm | 438*295*105mm | 438*295*105mm |
Weight | 7kg | 9kg | 9kg |
Operating Temperature Range | (-10'℃ to 50℃) | (-10'℃ to 50℃) | (-10'℃ to 50℃) |
- Lithium battery activation function by PV or Utility
- Compatible work with lifepo4 battery via Rs485
- PVInput 500Vdc Max
- Built-in MPPT60A/100A/120A
- Detachable dust coverforharsh environment
- Wifi remote monitoring optional
- Support multiple output priority:UTL,SOL,SBU,SUB
- EQ function to optimize battery performance and extend lifecycle
