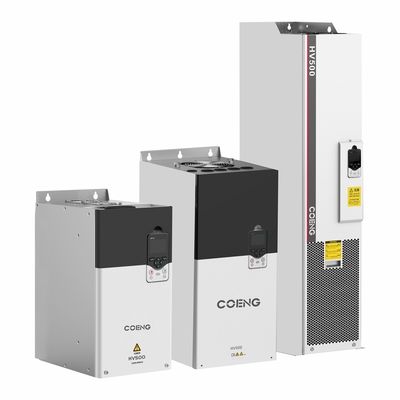

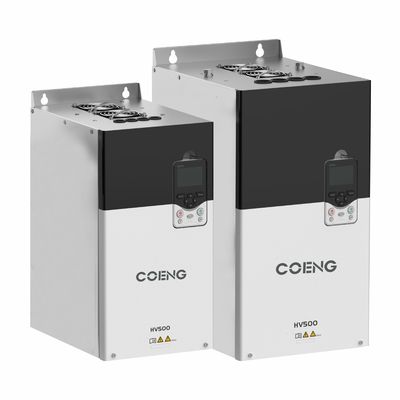

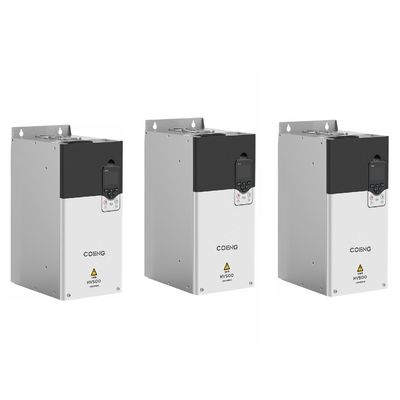

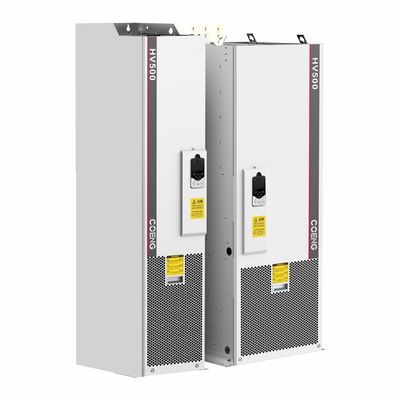

Comprehensive Protection VFD with Overvoltage, Undervoltage, and Phase Loss Safety Features
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | COENG |
| 証明 | EC |
| モデル番号 | HV500 |
| 最小注文数量 | 1 |
| パッケージの詳細 | カートン、合板の箱 |
| 受渡し時間 | 10-30Working Days |
| 支払条件 | L/C、T/T、Western Union |
| 供給の能力 | 20000SETS/YEAR |
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 保護グレード | IP20 | 冷却方法 | 強制空気冷却 |
|---|---|---|---|
| 効率 | 5.5kW~22kW: ≥93% 30kW以上: ≥95% | 入れられた電圧 | 200V (-15%) ~240V (+10%) 3Phase, 380V (-15%) ~480V (+10%) 3Phase, 500V (-15%) ~690V (+10%) 3Phase |
| 入力頻度 | 50Hz/60Hz±5% | 出力電圧 | 0V~入力電圧 |
| 出力周波数 | 0Hz~500Hz | ||
| ハイライト | VFD with overvoltage protection,frequency inverter with safety features,VFD with phase loss protection |
||
製品の説明
Operation panel
HIC200-OP-10-W is a smart operator panel developed independently for high-performance transmission products, which is informative, friendly and easy to use, and according to the different configurations of the panel, it is divided into two kinds: wiFi function and without WiFi function, which are conveniently applied to high-performance, single transmission, multi-VFDs system, it can monitor and adjust the system.
Accessory
| Optional | Module | Function |
| Keyboard Base | HVKMB | Depending on the situation, the base can be installed in the specified position and the drive can be operated by operating the keyboard |
| Communication Adapter | HVCOM-USB | The drive can achieve high-speed communication with the computer via this option |
| Profibus-DP Expand Card | HVCOM-DP | It is for Profibus-DP bus communication, It can fulfill the monitoring and diagnostics of inverters |
| ABZIncremental Code disk Expansion Card |
HVPG-ABZ | Code disk expansion card, incremental code disk for ABZ signal output, power programmable control, compatible single/bipolar output of the code disk |
| CANopen Expansion Card | HVCOM-CAN | It is for CANopen bus commnication, it can fulfill the monitoring and diagnostics of inverters |
| Three-phase voltage detection module |
HVVMU | Detection of three-phase voltage, it can be used for permanent magnetic synchronous motor soft start grid, speed tracking and other functions |
Technical Specification
| Technical Specification | ||
| Input/output Power |
Input Uin | 200V (-15%) ~240V (+10%) 3Phase , 380V (-15%) ~480V (+10%) 3Phase, 500V (-15%) ~690V (+10%) 3Phase |
| Input Frequency | 50Hz/60Hz±5% | |
| Unbalance Degree of Uin | ≤3% | |
| Output Uout | 0V~Input Uin | |
| Output Frequency | 0Hz~500Hz | |
| Control Performance |
Motor Type | Asynchronous / Synchronous |
| Control Method | V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control) | |
| Range of Speed Regulation | 1:10 V/F, 1:100 OLVC, 1:1000 CLVC | |
| Start Torque | VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz) | |
| Torque Precision | ≤5%, Vector Control | |
| Torque Pulsation | ≤5%, Vector Control | |
| Speed Regulation Precision | OLVC 0.2%, CLVC 0.01% | |
| Torque Response | ﹤5ms, Vector Control | |
| Dynamic Speed Reduction | OLVC＜0.5%*s, CLVC＜0.3%*s | |
| Acceleration and Deceleration Time | 0.0s~3200.0s, 0.0min~3200.0min | |
| Torque Lifting | 0.0％~30.0％ | |
| Overload | Heavy Load Application 150% 1min/5min, Light Load Application 110% 1min/5min | |
| V/F Curve | Multiple ways: linear V/F curve, 5 kinds of torque reduction characteristic curve mode (2.0 power, 1.8 power, 1.6 power, 1.4 power, 1.2 power), user-defined VF curve | |
| Input Frequency Accuracy | Digital: 0.01Hz, Analog: 0.01Hz | |
| Control Performance |
Acceleration and Deceleration Curve | Straight, S Curve |
| Multiple Speed-Steps Operation | 16-Speed Steps Operation through control terminals | |
| Automatic VoltageAdjustment (AVR) |
Keeping the output voltage constant automatically when the grid voltage changes within a certain range | |
| Fixed Length | Setted and Fixed Length Control | |
| In-build PID | It Can Easily Constructed Closed loop control system | |
| Enhencement Function | Free Function Block | |
| Input/output Power |
Set Frequency | Keyboaed, UP/DOWN Terminals, Multiple Speed-Steps Operation, Terminals Pulsation, Com |
| Analog Input Terminals | AI1: 0V~10V/-10V~10V, AI2: 0V~10V/0(4) mA~20mA | |
| Digital Input Terminals | DI1-DI6, 6 programmable digital input terminals, optocoupler isolation, compatible with drain/source input | |
| Digital Input/Output Terminals | DIO1: Fast pulse output, normal input/output; DIO2: fast pulse input, normal input/output | |
| Anolog Output Terminals | 2 Strings 0V~10V/0 (4) mA~20mA | |
| Relay Output | 2Strings Contact Type FormC | |
| Motor Temperature Detection | Support PT100/PT1000/KTY84 | |
| STO Interface | SIL3/PLe Safe torque shutdown function | |
| Com | Com Protocol | Modbus RTU (Standard), Pro ibus, CANopen, pro inet, Devicenet, Ethercat |
| Environment | Altitude | Without Derating Operation Within 2000m Altitude; 2000m～4000m, Each 100m lifting, Derating 1% (Current) |
| Operation Temperature | -25℃~+40℃ (40℃~55℃ Derating) | |
| Humidity | 15%~95%, Without Condensation | |
| Vibration | 3M3, IEC60721-3-3 | |
| Storage Temperature | -40℃~+70℃ | |
| Operation Place | Indoor, Without direct sunlight, no flammable, corrosive gases, liquids and conductive particles | |
| Accessory | Encoding card, communication expansion card, voltage detection card | |
| Protection Function | Short circuit, over current, overload, over voltage, under voltage, phase loss, over temperature, external fault, etc. | |
| Efficiency | 5.5kW~22kW: ≥93%; Above 30kW: ≥95% | |
| Installation Method | Cabinet | |
| Protection Degree | IP20 | |
| Cooling | Forced Air Cooling | |
United States
-
Q1: What are the key applications of the HV500 inverter in US industrial settings?
A: The HV500 is ideal for HVAC, pumping, conveyor systems, and manufacturing automation, offering high precision and energy savings compliant with US standards.
-
Q2: How does the HV500 handle voltage fluctuations common in US power grids?
A: It supports input voltage ranges from 200V to 690V 3-phase with automatic voltage adjustment (AVR), ensuring stable operation even during fluctuations.
-
Q3: Is the HV500 suitable for high-torque applications like heavy machinery?
A: Yes, with CLVC mode, it provides 180% starting torque at 0Hz, perfect for crushers, presses, and other high-torque machines.
-
Q4: What communication protocols are supported for integration with US PLC systems?
A: It supports Modbus RTU, Profibus, CANopen, Profinet, Devicenet, and Ethercat, ensuring seamless integration with most US industrial networks.
-
Q5: How does the HV500 perform in high-temperature environments like Texas?
A: It operates from -25°C to +40°C without derating, and up to 55°C with derating, making it reliable in hot climates.
-
Q6: Does the HV500 meet US safety standards?
A: Yes, it includes SIL3/PLe safe torque off (STO) and protection against overload, short circuit, and phase loss.
-
Q7: Can the HV500 be used with asynchronous and synchronous motors?
A: Absolutely, it supports both motor types with flexible control methods (V/F, OLVC, CLVC).
-
Q8: What is the efficiency rating of the HV500?
A: For models 5.5kW–22kW, efficiency is ≥93%; above 30kW, it’s ≥95%, helping reduce energy costs.
-
Q9: How user-friendly is the HV500 for technicians?
A: It features multiple speed steps, PID control, and easy terminal programming, reducing setup time.
-
Q10: Does the HV500 offer long-term reliability?
A: With robust construction, forced air cooling, and protection against dust and moisture (IP20), it ensures long service life.
