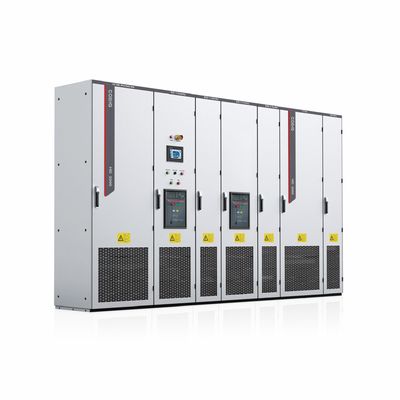

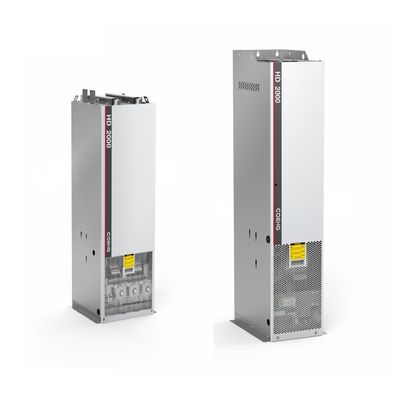

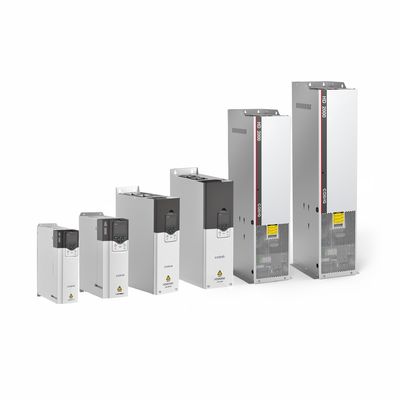

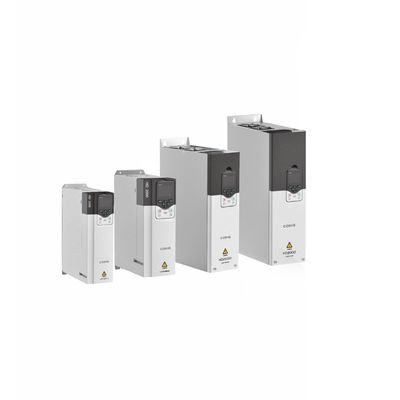

High-Efficiency HD2000 Series VFD with ≥99% Operating Efficiency for Industrial Motor Drives
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | COENG |
| 証明 | CE |
| モデル番号 | HD2000-C-10-2 |
| 最小注文数量 | 1 |
| パッケージの詳細 | 木製の箱 |
| 受渡し時間 | 7-30working幾日 |
| 支払条件 | L/C、T/T、Western Union |
| 供給の能力 | 20000SETS/YEAR |
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| シングル/マルチドライブ | 柔軟なシステムで2~4つの四角を支えるユニット/キャビネット | モジュラー設計 | アプリケーションの柔軟性と包括的なシステム統合を可能にします |
|---|---|---|---|
| 矯正装置 | 汎用的な電源変換のための基本/スマート/PWM直流装置 | マックス 単位の電源 | 1400kW (空気冷却),2800kW (液体冷却) |
| 電圧レベル | 400V,690V,1140V,1380V | マックス パラレル動作力 | 11200kW (空気冷却), 22400kW (液体冷却) |
| ハイライト | High-Efficiency VFD for industrial motors,HD2000 Series Variable Frequency Drive,VFD with 99% operating efficiency |
||
製品の説明
| Model | HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled) | |
| Basic Rectifier | Input voltage | 4:380V～480V,6:500V～690V |
| Input frequency | (50Hz/60Hz)±6% | |
| Output voltage | Input voltage * 1.32 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥99% Efficiency | |
| Protection eunctions | Protection functions: Overheating protection, soft-start protection, Interlock | |
| protection, and more. | ||
| Intelligent rectifier | Input voltage | 4:380V ~ 480V,6: 500V ~ 690V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.3 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥98.5% Efficiency | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more | |
| PWM rectifier | Input voltage | 4:380V~480V,6:500V~690V,9:1140V,A:1380V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.5 (Under rated conditions) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥98% Efficiency (Including LCL filter unit) | |
| Power factor | Adjustable (Factory setting at 1) | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more. | |
| Inversion | Rated Input voltage | 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc, |
| A:1488Vdc~2200Vdc | ||
| Output voltage | 0 ~ Rectifier AC input voltage | |
| Output frequency | 0 ~ 500Hz | |
| Speed range | V/F:1:50 OLVC:1:200 CLVC:1:1000 | |
| Speed stability | OLVC:0.2% CLVC:0.01% | |
| Speed fluctuation | OLVC:0.2% CLVC:0.1% | |
| Starting torque | OLVC:150%(0.5Hz) CLVC:200%(0Hz) | |
| Torque control | V/F: Unsupported OLVC:Supported CLVC: supported | |
| Torque accuracy | OLVC:5% CLVC:5% | |
| Torque response time | OLVC:5ms CLVC:5ms | |
| Speed response time | OLVC:100ms CLVC:100ms | |
| Dynamic speed drop equivalent | OLVC:0.5%*s CLVC:0.3%*s | |
| Environmental conditions | Temperature | -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies |
| Humidity | 5% ~ 95% Mon-condensing | |
| Altitude | ≤4000m, Derating applies from 2000m to 4000m | |
| Mechanical data | Anti-vibration performance | Complies with IEC 60721-3-3:2002 |
| Protection level | IP00 / IP20 / IP40 | |
| Safety level | Complies with UL 508C-2004 | |
| Cooling method | Liquid-cooled | |
Motor Drive VFD Inverter Typical Applicantion
The distinctive selling points corresponding to different countries or regions
1. United States
-
High Efficiency Compliance: With operating efficiency up to 99%, the HD2000 significantly reduces energy consumption, aligning with U.S. energy-saving initiatives and lowering operational costs.
-
Robust Protection Systems: Advanced overheating and overcurrent protection ensure minimal downtime in demanding industrial applications like manufacturing and logistics.
-
Wide Voltage Range: Supports input voltages from 380V to 690V, ideal for regions with variable grid stability.
-
UL Safety Certification: Complies with UL 508C-2004, providing confidence in product safety and reliability.
-
Flexible Cooling Options: Air-cooled and liquid-cooled models adapt to diverse environmental conditions, from humid coastal areas to arid inland zones.
2. Germany
-
Precision Engineering: Offers speed stability up to 0.01% with CLVC, meeting Germany’s high standards for precision in automation and robotics.
-
Energy-Efficient Operation: ≥98.5% efficiency reduces carbon footprint, supporting Germany’s green energy transition.
-
Modular Design: Enables seamless integration into multi-drive systems, perfect for Industry 4.0 smart factories.
-
High Altitude Performance: Operates efficiently up to 4000m with derating, suitable for industrial plants in elevated regions.
-
Comprehensive Protection: IGBT pass-through and interlock protections enhance system longevity in high-precision applications.
3. Japan
-
Compact and Space-Saving: Compact chassis types (e.g., 5.5–160kW) fit seamlessly into Japan’s limited industrial spaces.
-
High-Frequency Operation: Output frequency up to 500Hz supports high-speed manufacturing and electronics industries.
-
Reliable in Humid Conditions: 5–95% non-condensing humidity tolerance ensures performance in Japan’s humid climate.
-
Quick Torque Response: 5ms torque response time enhances control in precision-driven sectors like automotive and robotics.
-
Water-Cooled Options: Liquid-cooled models (up to 3400kW) support energy-intensive applications without overheating.
4. India
-
Voltage Fluctuation Resilience: Handles input voltage ranges from 380V to 690V, ideal for India’s unstable power grids.
-
Cost-Effective Efficiency: ≥98% efficiency reduces electricity costs for SMEs in textiles, agriculture, and manufacturing.
-
Dust and Moisture Resistance: IP40 protection level suits India’s dusty and humid industrial environments.
-
Easy Maintenance: Simple modular units allow quick repairs, minimizing downtime in remote areas.
-
High Overload Capacity: 150% overload for 60 seconds supports sudden load spikes common in Indian industries.
5. Brazil
-
Broad Temperature Tolerance: Operates from -15°C to +55°C, adapting to Brazil’s diverse climates from Amazon heat to southern chills.
-
Multi-Drive Capability: Supports complex multi-drive systems for Brazil’s growing mining and sugarcane processing sectors.
-
Energy Factor Adjustment: Adjustable power factor (factory-set to 1) optimizes energy use under Brazil’s strict regulatory norms.
-
Vibration Resistance: Complies with IEC 60721-3-3:2002, ensuring durability in vibration-prone applications like pulp and paper mills.
-
Localized Cooling Solutions: Air-cooled models (5.5–560kW) are ideal for facilities without advanced cooling infrastructure.
